Common Rail Lab Equipment Testing Machine Common Rail Diesel Pump Test Bench
Product IntroductionJZ-230 HEUI injector test bench is a medium-pressure common rail injector test bench, adopts full automatic control, can conveniently repair and test Euro-3, Euro-4 injectors. It can test Caterpillar injector of 3126, 3126B, unit injectors, and other medium-pressure common rail i......
Send Inquiry
Product Description
Product Introduction

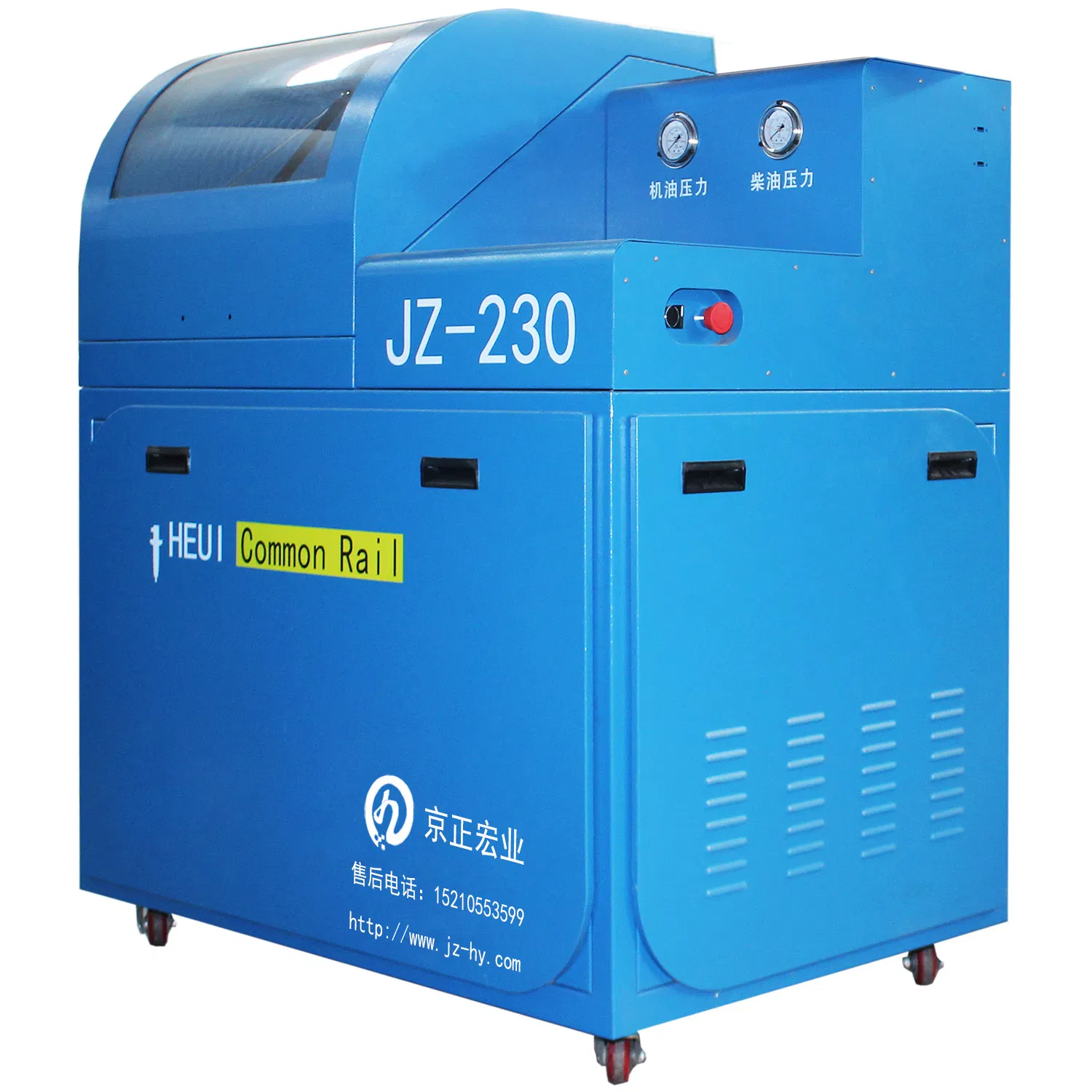

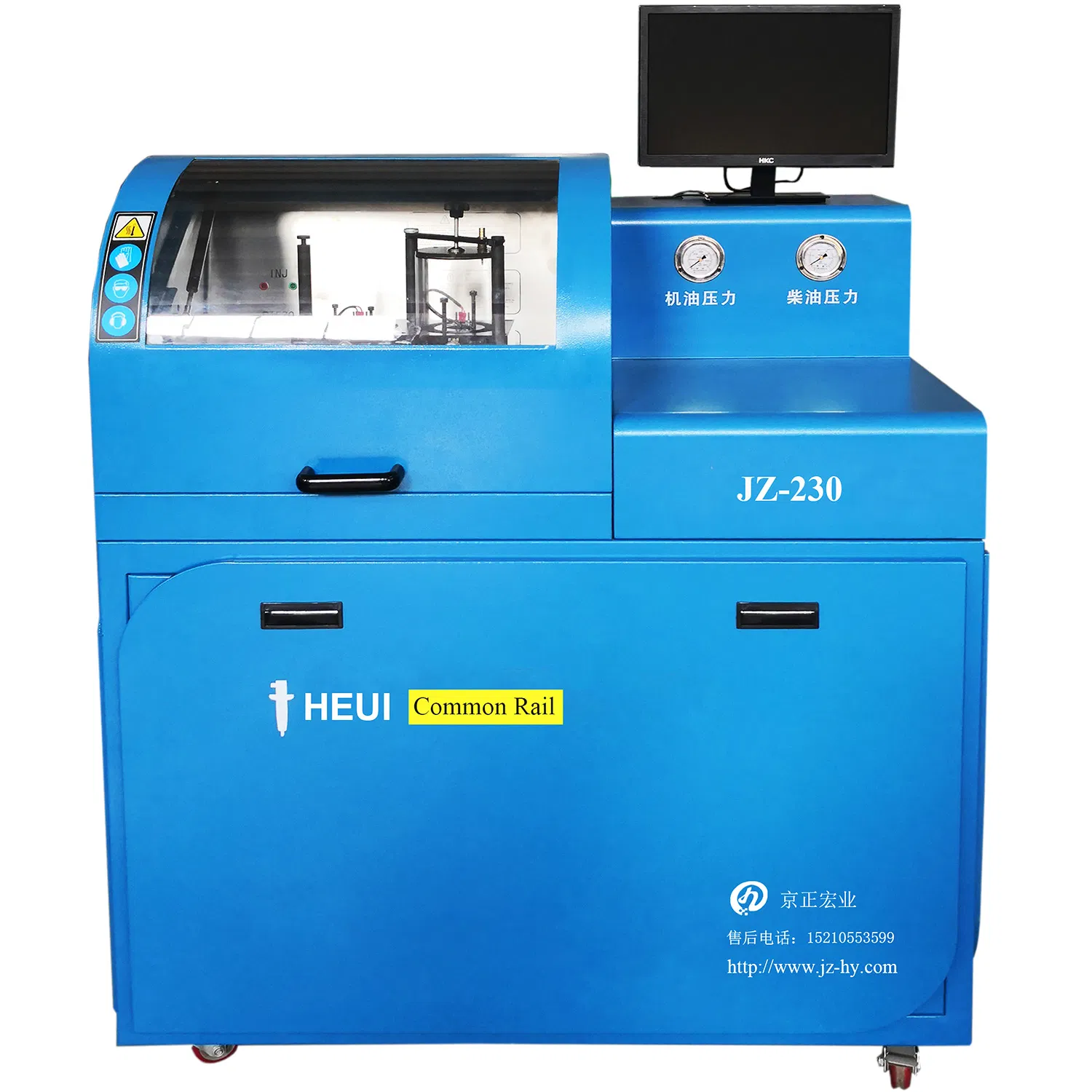

JZ-230 HEUI injector test bench is a medium-pressure common rail injector test bench, adopts full automatic control, can conveniently repair and test Euro-3, Euro-4 injectors. It can test Caterpillar injector of 3126, 3126B, unit injectors, and other medium-pressure common rail injectors. The experimental data are complete.
Functions Description

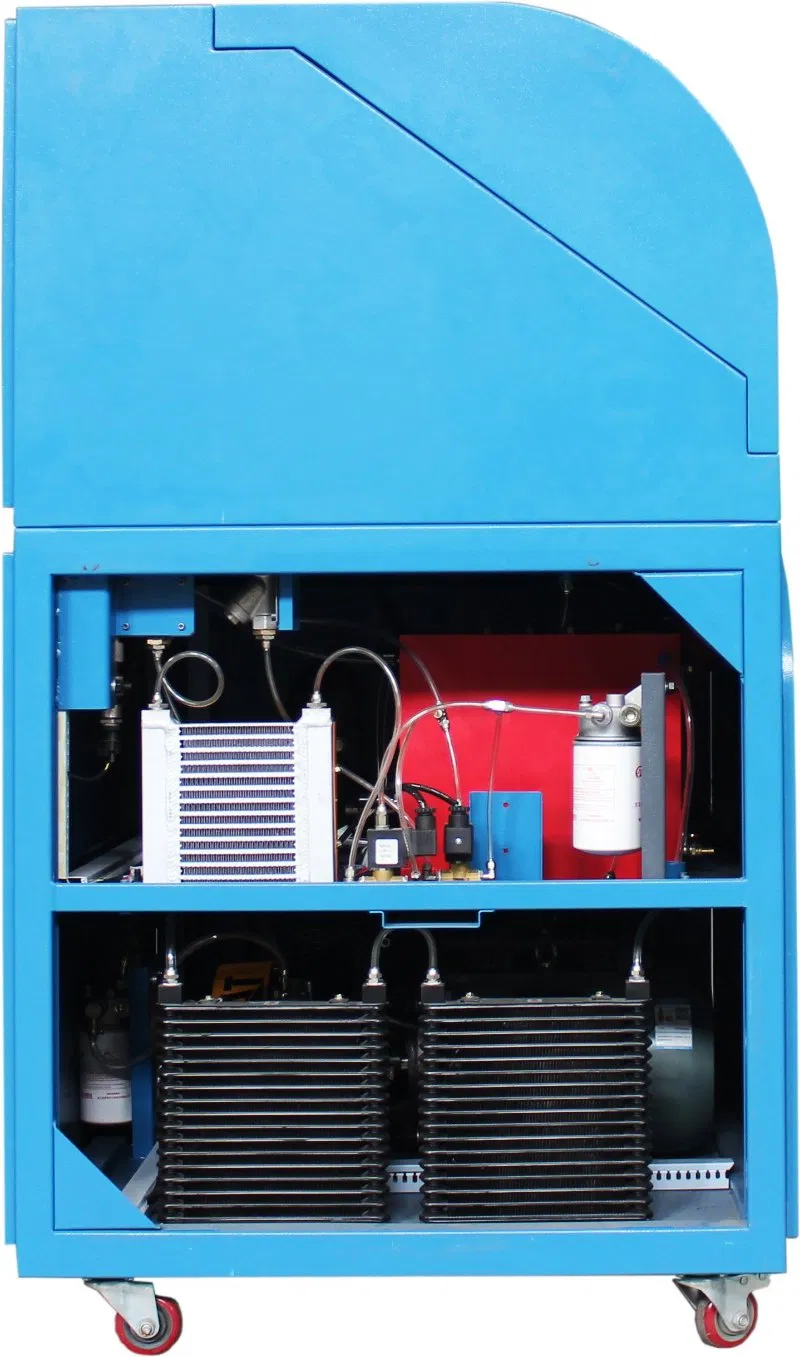

Product Details
Technical Parameters

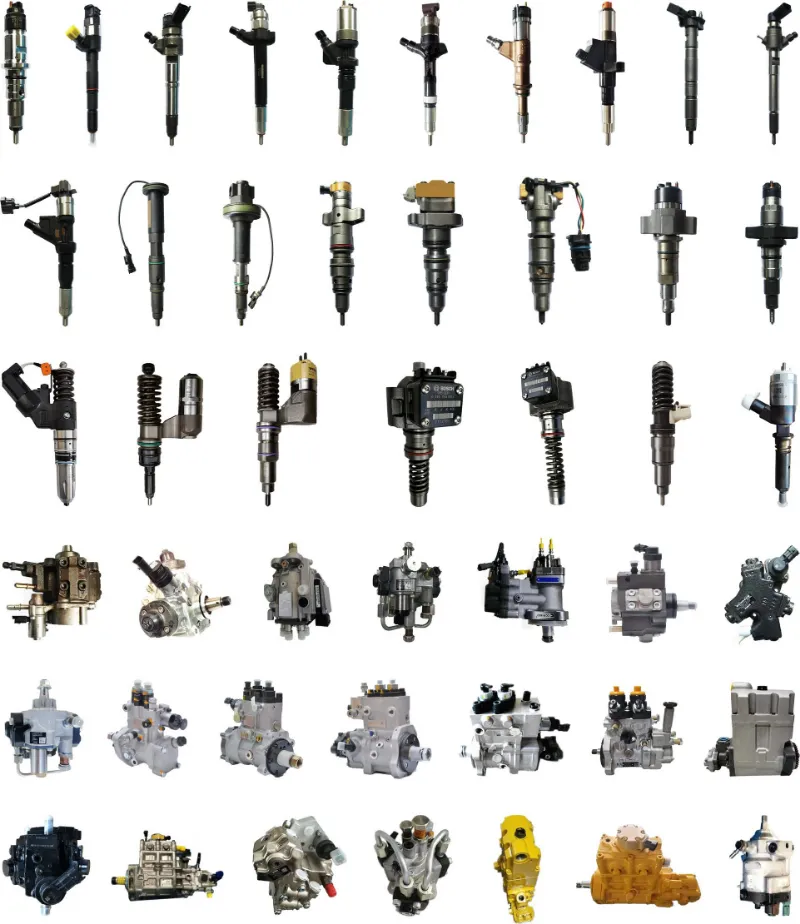

Testing Scope

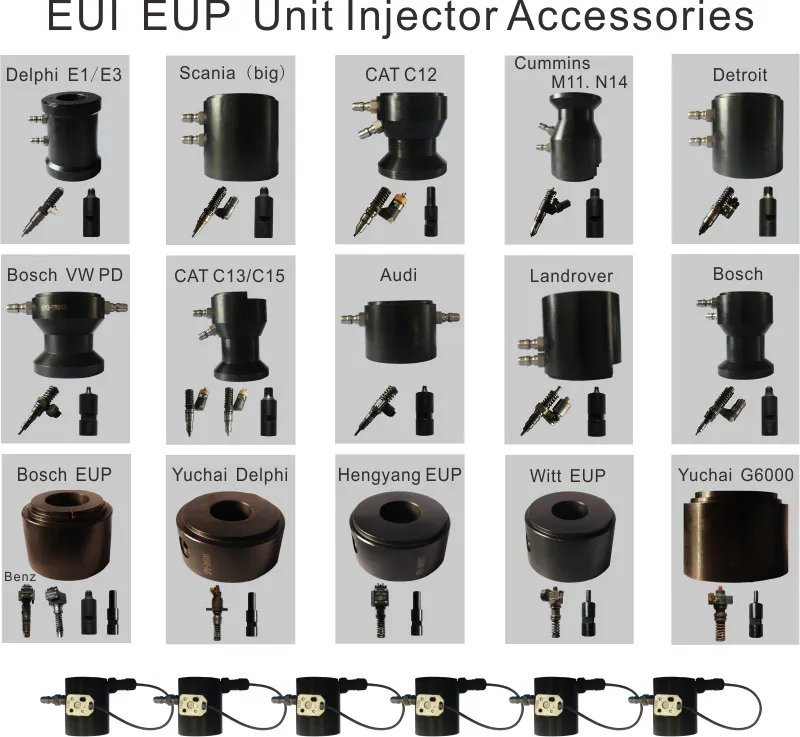

Related Products and Fixtures
Packing and Delivery
Our Company
Why Choose Us
1. Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years. Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
2. Independent design and development team,and produce experience.
3. Almost all important parts of the equipment are come from top suppliers in the industry, such as DRV, common rail tube, CP3 pump, from original of Bosch.
4. Strict QC, good pre-sale and after-sale service, Providing remote assistance services free.
5. Customized according to customer requirements, such as appearance, color, etc.
Contact Us
Jazmín Lu | Sales Manager
Wuxi JiaMiao Auto Technology Co., Ltd
Address: No.1 Miaojiaan, Shitangwan industrial park, Luoshe Town Wuxi City Jiangsu Province China
Website: jm888888.en.made-in-china.com

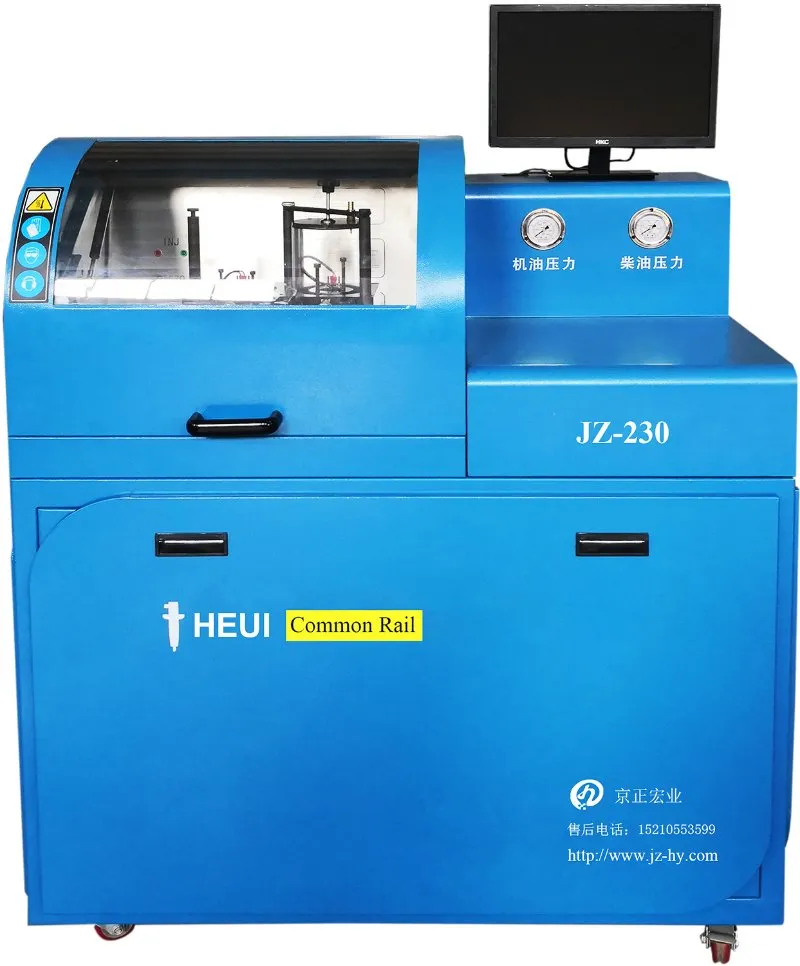

JZ-230 HEUI injector test bench is a medium-pressure common rail injector test bench, adopts full automatic control, can conveniently repair and test Euro-3, Euro-4 injectors. It can test Caterpillar injector of 3126, 3126B, unit injectors, and other medium-pressure common rail injectors. The experimental data are complete.
Functions Description
| 1. Integrated flow sensor | 12. Can test piezo injectors |
| 2. With electronic measuring system | 13. Can test common rail injectors |
| 3. Accurate data Multiple protection | 14. Can test mid-pressure injectors |
| 4. Intelligent algorithm Automatic calibration | 15. Can test the tightness of the injector |
| 5. Automatically heating/cooling control for test oil | 16. Can detect engine oil leakage, diesel leakage |
| 6. Automatically measure different working conditions and analyze results | 17. Oil level lower limit alarm |
| 7. Bosch data from original equipment of EPS708 | 18. Linear calibration of flow sensor |
| 8. Denso, Delphi, Siemens data are calibrated by the latest injectors | 19. Engine oil heating control |
| 9. Bosch CP3 pump and high pressure oil rail with DRV | 20. Diesel oil and engine oil separation |
| 10. Data backup, software update and cloud upgradable functions | 21. Real-time display the fuel delivery graph |
| 11. Function debugging can be realized under different speed conditions | 22. Solenoid valve drive pulse width and frequency can be adjusted |

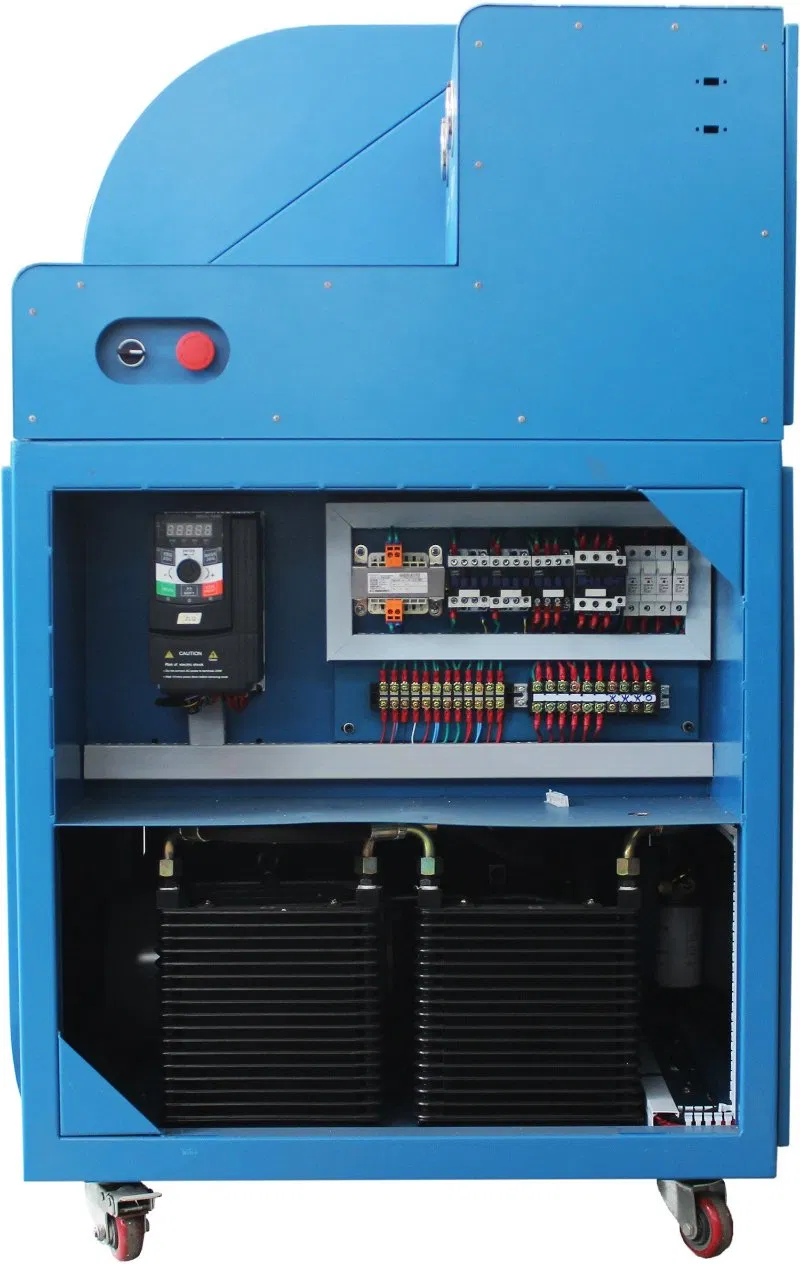

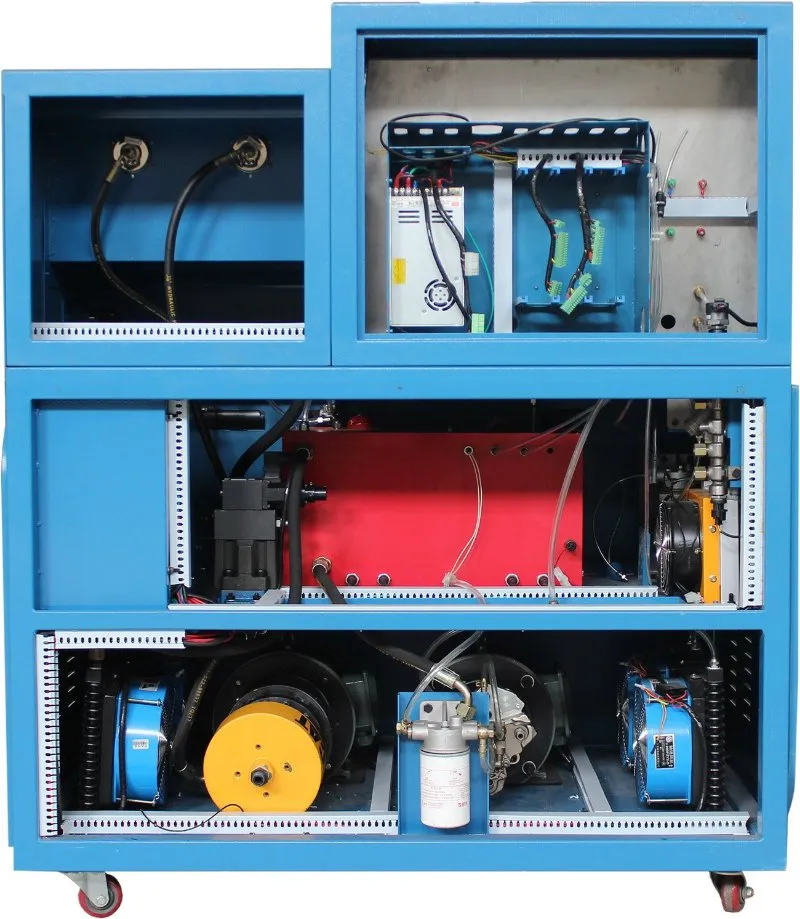

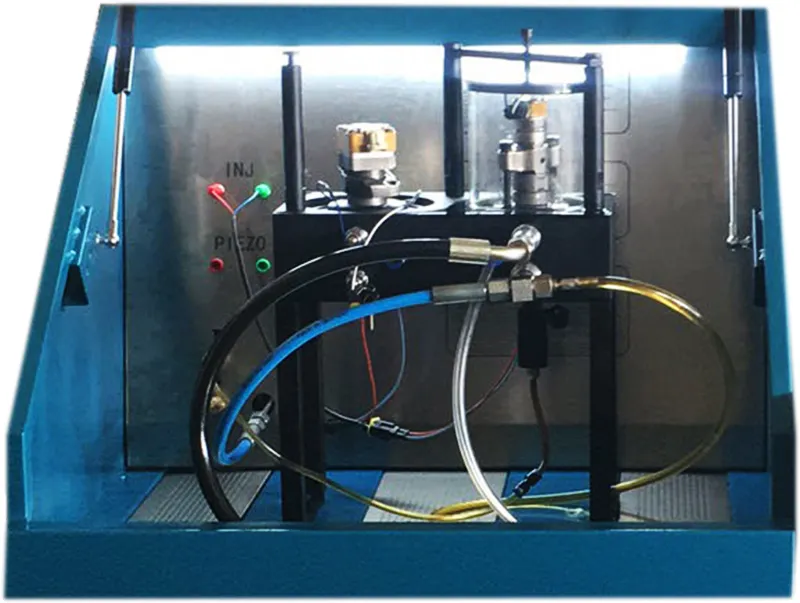

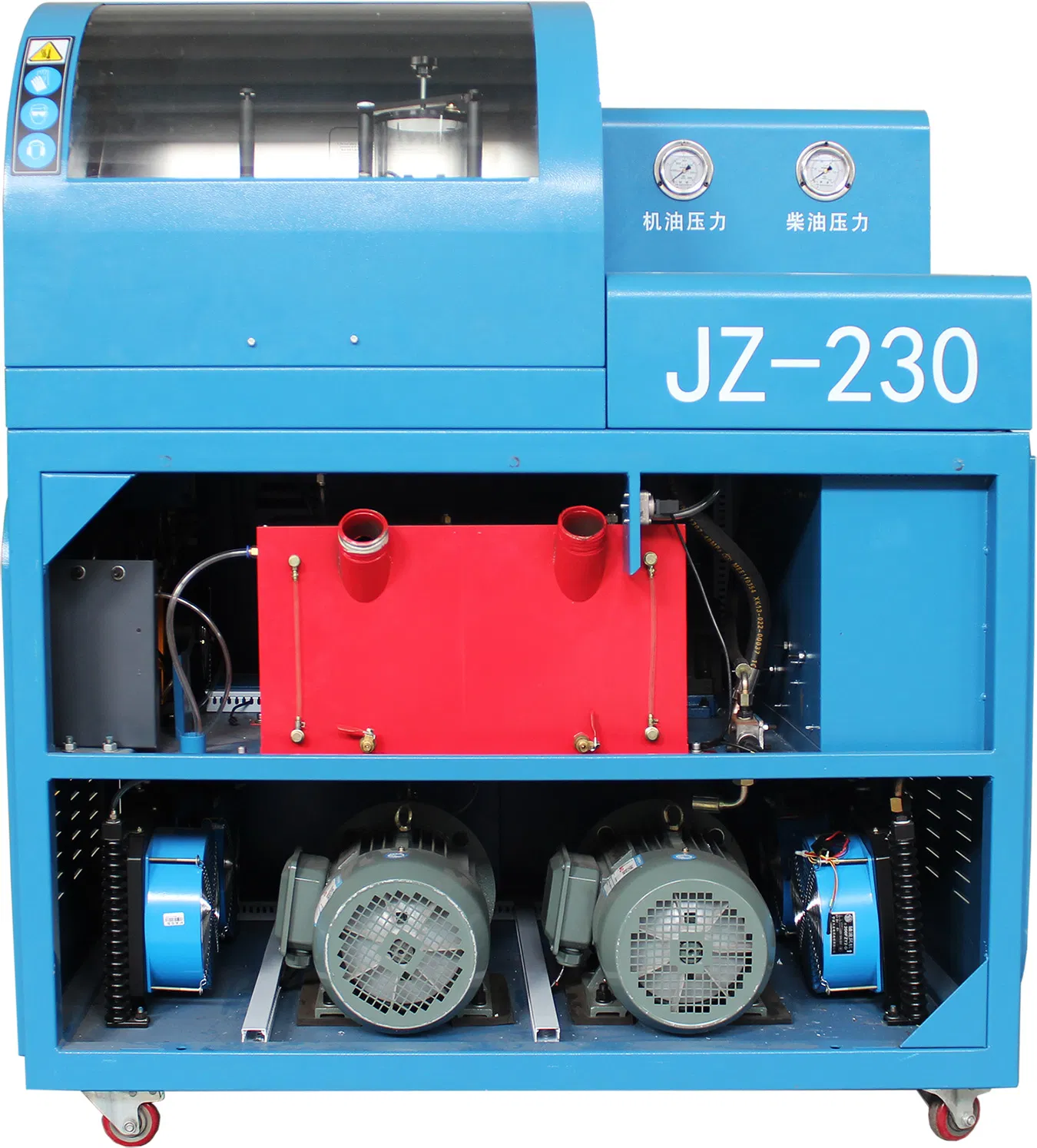

Product Details
Technical Parameters
| Technical Parameters | |
| Output | 11 KW |
| Power | 3-Phase 4-Wire 380V 50/60HZ |
| Rail Pressure | 0~2200 Bar |
| Rail Pressure Precision | ±5 Bar |
| Diesel oil pressure range | 0~0.6 Bar |
| Engine oil pressure range | 0~250 Bar |
| Fuel Temperature | 40±2ºC |
| Tank Volume | 20 L, Filter Precision: 5μm |
| Tank Volume | 40 L, Filter Precision: 3μm |
| Gross Weight | 550 kg |
| Packing Size | 1450×1040×1650 mm |
| Speed Control Model | Converter Control |
| Temperature Control System | Air-Cooled Heat Dissipation |
| Nozzle Sensor | Imported Original Elliptical Type Flow Sensor |
| Language | English, Spanish, Russian,etc |
| Material | Metal Plate |
| Painting | Powder Painting, Durable |
| Color | Dark Blue/ Green (can be customized) |
| Logo | Jing Zheng Hong Ye (can be customized) |
| MOQ | 1 Piece |
| Payment | 40%Deposit, the rest paid before delivery |
| Warranty Time | 12 months |
| Delivery time | 30 days after prepaid |
| Shipping Packing | Wooden Case |
Testing Scope

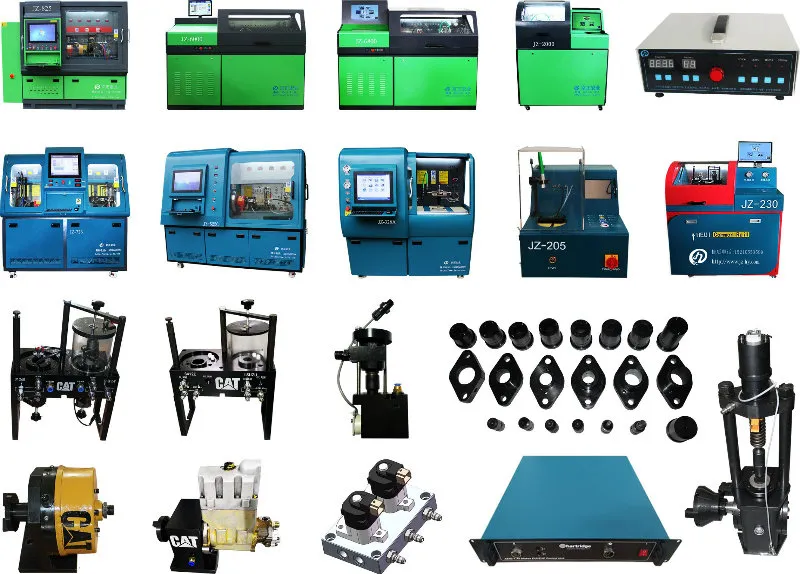

Related Products and Fixtures
Packing and Delivery

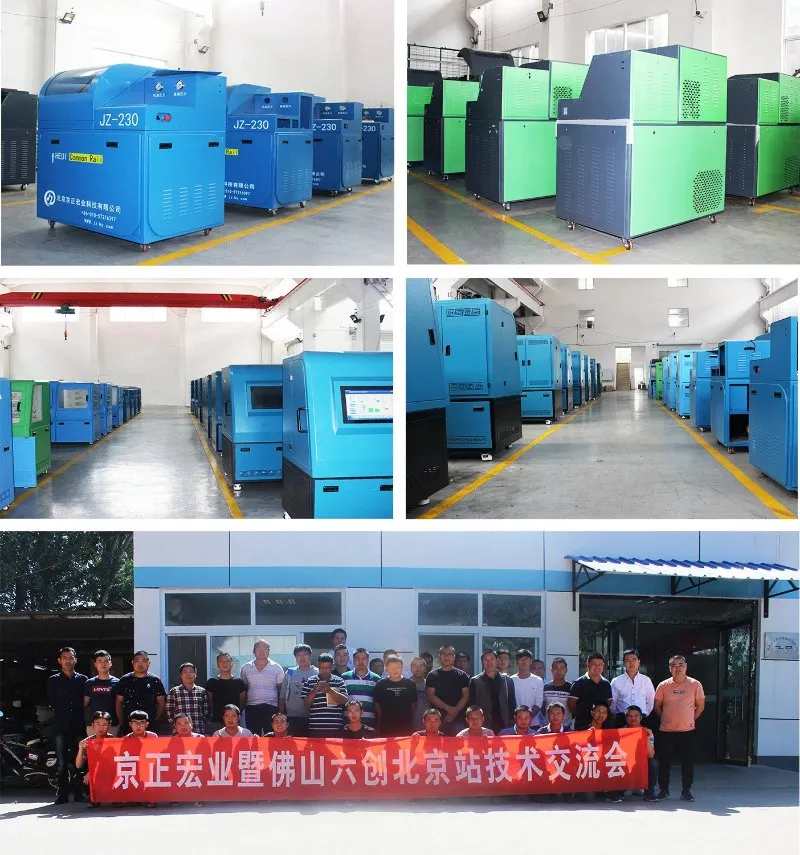

Our Company
Why Choose Us
1. Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years. Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
2. Independent design and development team,and produce experience.
3. Almost all important parts of the equipment are come from top suppliers in the industry, such as DRV, common rail tube, CP3 pump, from original of Bosch.
4. Strict QC, good pre-sale and after-sale service, Providing remote assistance services free.
5. Customized according to customer requirements, such as appearance, color, etc.
