Product Description
Common rail system test bench CR817

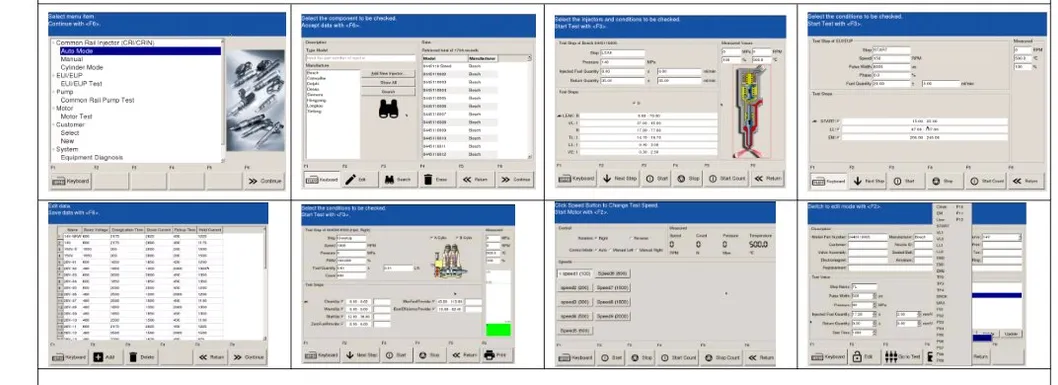

Interface:
SETTING
CR817 COMMON RAIL SYSTEM TEST BENCH
Functions:
CR817 COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing.
1.Automatically test injection and return volume, pump chamber pressure, feeding pressure and sealing performance for BOSCH, SIEMENS DENSO , DELPHI and CAT common rail pumps.
2.Automatically test BOSCH, CAT, CUMMINS, DELPHI, DENSO, Mercedes-Benz, Volvo, EUI EUP and Dual-valve E3 etc..
3.Automatically test special DENSO HP0 double electromagnetic sensor, single electromagnetic sensor and so on DNESO Pumps.
1, Main motor speed: 0-4000 r / min can be adjustable.
2, Motor power: 7.5KW ,11KW, 15KW, 18.5KW optional.
3, Fuel Injector open voltage Control range: 12V, 80V, 150V Control accuracy: phase adjustment
4, Injector opening frequency Control: 0-1000HZ Control accuracy: 1HZ
5, Fuel Injector Hold Time Control: 0-65535us
6 Delivery Oil Count Control: 0-1000 times Control accuracy: 1 times
7, Fuel pressure control Control: 0-2000bar Control accuracy: 1bar
8, Electronic power: 3 PHASE 380V or 3 PHASE 220V
Interface:
SETTING
CR817 COMMON RAIL SYSTEM TEST BENCH
Functions:
CR817 COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing.

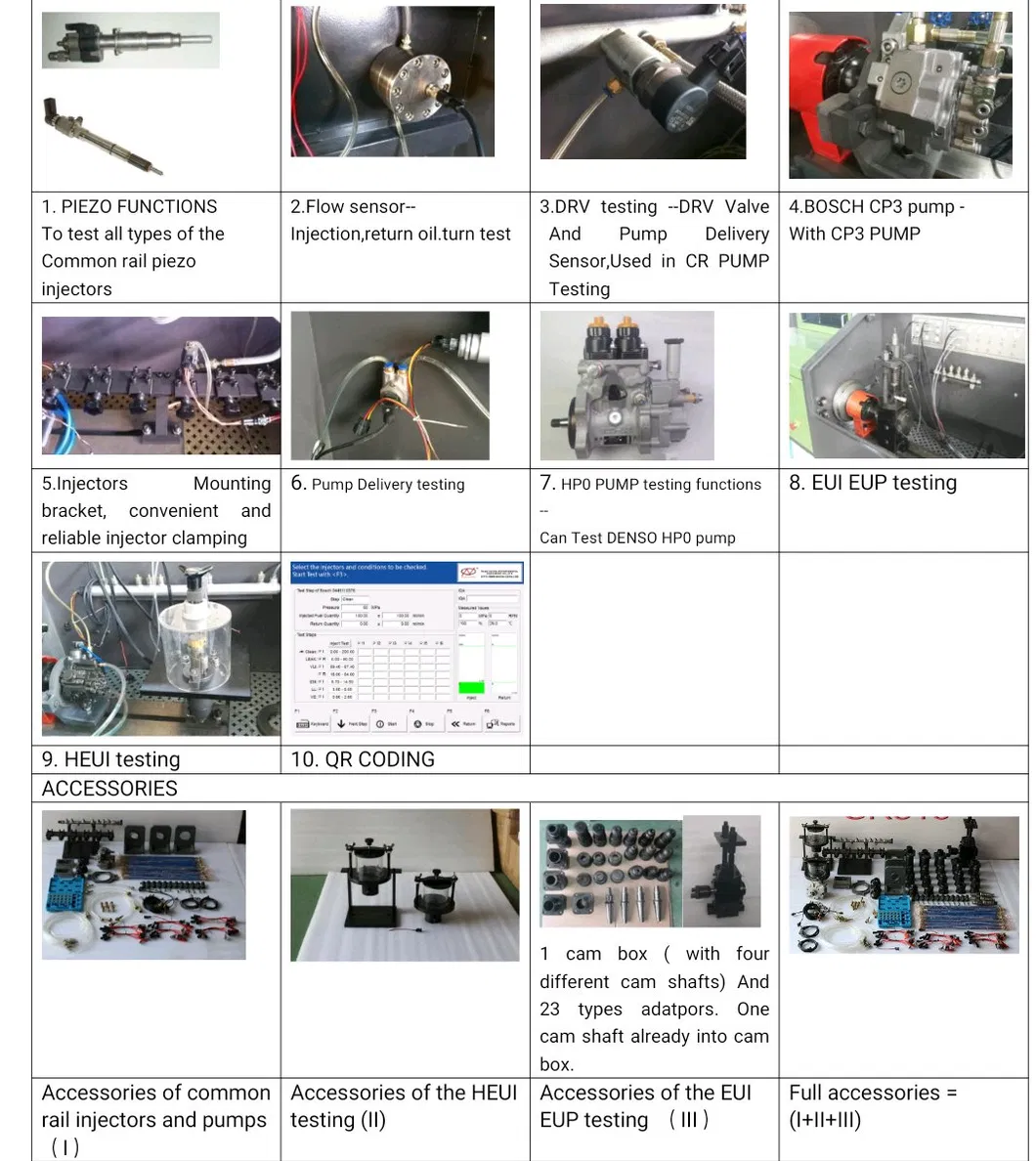

1.Common rail Injectors:
- Cleaning high pressure for the impurities inside of the injectors.
- Atomization test: to judge whether the injector is blocked through the atomization effect.
- Sealing test: check whether nozzle, nozzle cap nut and solenoid valve leaks oil.
- Testing the injection and return volume under: VL. TL. LL. VE and VE2 status.
- Test solenoid value injectors of different models automatically and test 6 injectors continuously .
1.Automatically test injection and return volume, pump chamber pressure, feeding pressure and sealing performance for BOSCH, SIEMENS DENSO , DELPHI and CAT common rail pumps.
2.Automatically test BOSCH, CAT, CUMMINS, DELPHI, DENSO, Mercedes-Benz, Volvo, EUI EUP and Dual-valve E3 etc..
3.Automatically test special DENSO HP0 double electromagnetic sensor, single electromagnetic sensor and so on DNESO Pumps.
3.System advantage:
- Full automatic operation with Windows7 system.
- Original Bosch testing database: current curve can be set. Test accuracy similar with world leading test bench.
- It include more than 2700 types testing data of BOSCH, DENSO. DELPHI SIEMENS injectors and pumps. The database can be edited, modified and regularly updated.
- Self-protection under overheat, oil mist , over pressure and low oil level.
- Remote control is convenient for service and software upgrade.
- Include CHINESE ENGLISH, SPANISH, RUSSIA language etc.. which are proper for global using.
4.Technical parameters
1, Main motor speed: 0-4000 r / min can be adjustable.
2, Motor power: 7.5KW ,11KW, 15KW, 18.5KW optional.
3, Fuel Injector open voltage Control range: 12V, 80V, 150V Control accuracy: phase adjustment
4, Injector opening frequency Control: 0-1000HZ Control accuracy: 1HZ
5, Fuel Injector Hold Time Control: 0-65535us
6 Delivery Oil Count Control: 0-1000 times Control accuracy: 1 times
7, Fuel pressure control Control: 0-2000bar Control accuracy: 1bar
8, Electronic power: 3 PHASE 380V or 3 PHASE 220V
