Coding Injectors Common Rail Injector Test Bench
Coding injectors common rail injector test benchJZ-206 common rail injector test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4, Euro-5, Euro-6 injectors.It can test thousands of injectors, including Bosch, Delphi, Denso, Siemens, Caterpillar and so on. Th......
Send Inquiry
Product Description

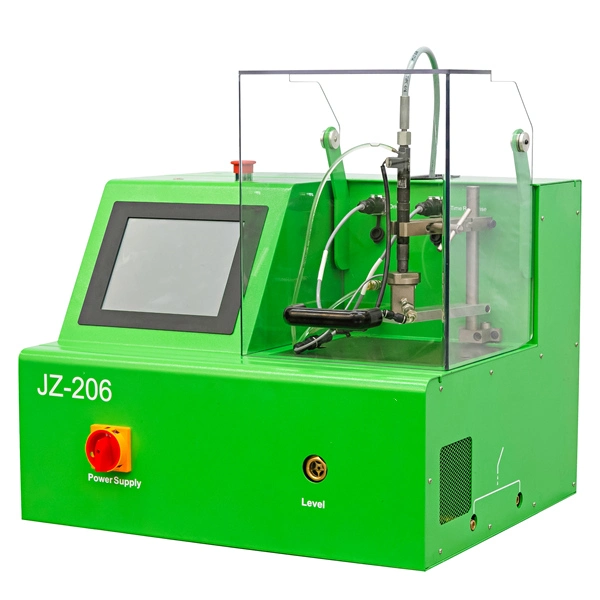

Coding injectors common rail injector test bench
JZ-206 common rail injector test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4, Euro-5, Euro-6 injectors.

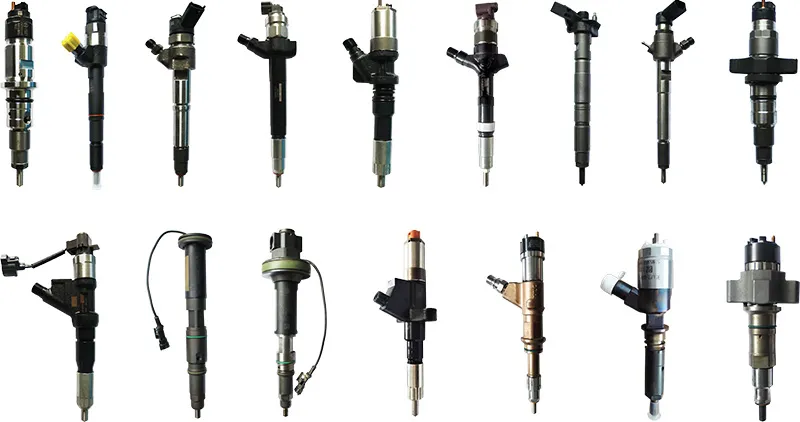

It can test thousands of injectors, including Bosch, Delphi, Denso, Siemens, Caterpillar and so on. The experimental data are complete.
Functions Description
JZ-206 common rail injector test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4, Euro-5, Euro-6 injectors.
It can test thousands of injectors, including Bosch, Delphi, Denso, Siemens, Caterpillar and so on. The experimental data are complete.
Functions Description
| 1. Integrated flow sensor | 14. BIP function |
| 2. With electronic measuring system | 15. Coding system |
| 3. Accurate data Multiple protection | 16. Bosch-IMA coder |
| 4. Prepositioned precise filter for sensor | 17. Bosch piezo-ISA coder |
| 5. Intelligent algorithm Automatic calibration | 18. Delphi C2i,C3i coder |
| 6. Real-time display the fuel delivery graph | 19. Siemens VDO-IIC coder |
| 7. Automatically heating/cooling control for test oil | 20. Denso QR correction coder |
| 8. Bosch data from original equipment of EPS708 | 21. Test piezo injectors |
| 9. Denso, Delphi, Siemens data are calibrated by the latest injectors | 22. Test solenoid valve injectors |
| 10. Many language interfaces can be switched | 23. Provide remote service free |
| 11. Bosch CP1 pump & high pressure oil rail with DRV | 24. Linear calibration of flow sensor |
| 12. Data backup, software update and cloud upgradable | 25. Opening pressure and flow rate of oil nozzle |
| 13. Function debugging can be realized under different speed conditions | 26. Measurement of resistance and inductance of injector's solenoid valve |
Our Advantage

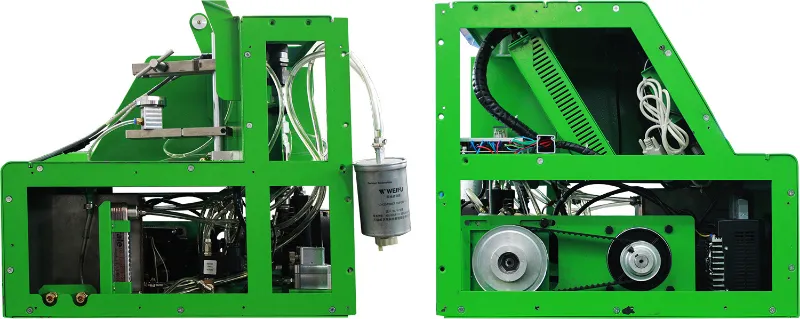

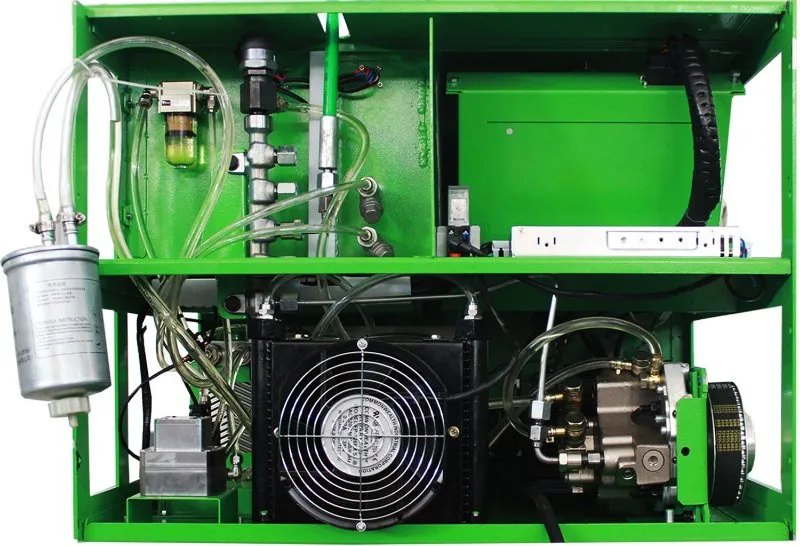

| Hardware advantage |
| 1. Motor power is 22 KW |
| 2. Air conditioning heat dissipation kit |
| 3. Metering valve detect the fuel flow |
| 4. Imported flow sensor from Germany |
| 5. Equipped with Bosch genuine DRV |
| 6. Equipped with Bosch genuine CP3 pump |
| 7. Equipped with Bosch genuine common rail tube |
| 8. Oil tank (including heating,refrigeration,liquid level detection,temperature detection) |
| 9. Short-circuit protection, ground protection, over-pressure protection during the testing |
| 10. Equipped frequency converter to achieve testing function under different speed conditions |
| 11. Equipped precise filter before flow sensor, which can effectively keep the sensor clean and extend the flow sensor usage life |
| Software advantage |

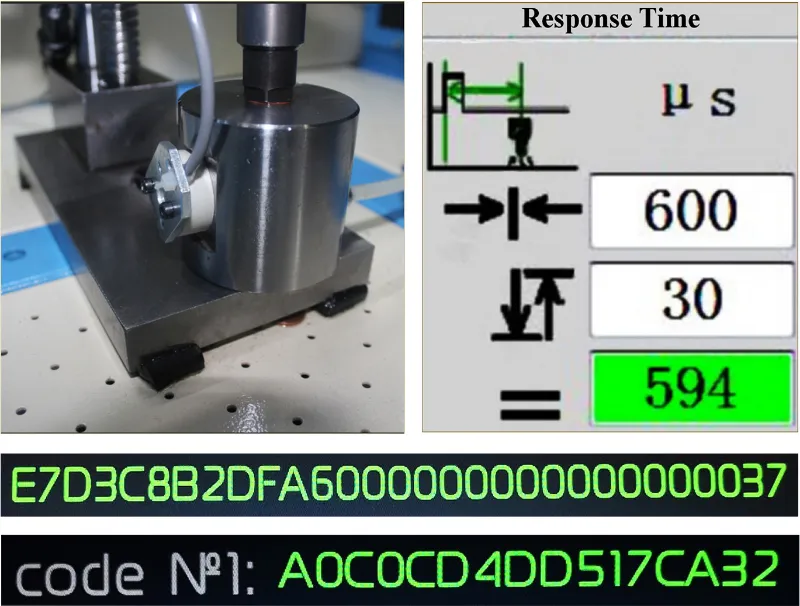

| 1. Injection timing responding sensing system of the injectors |

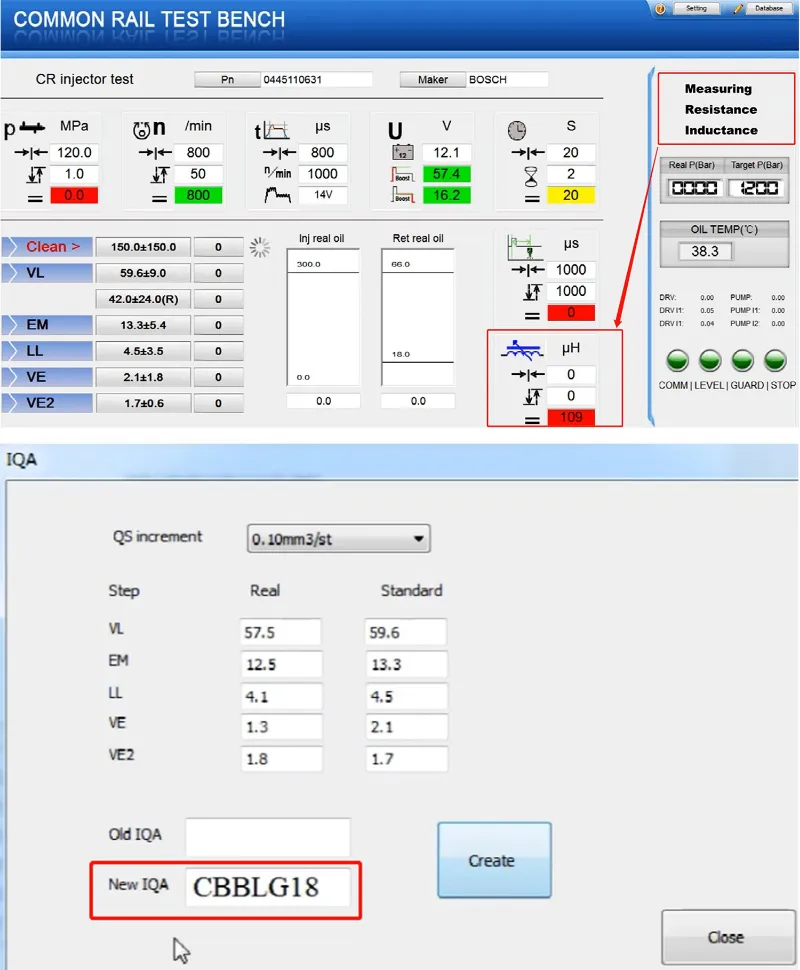

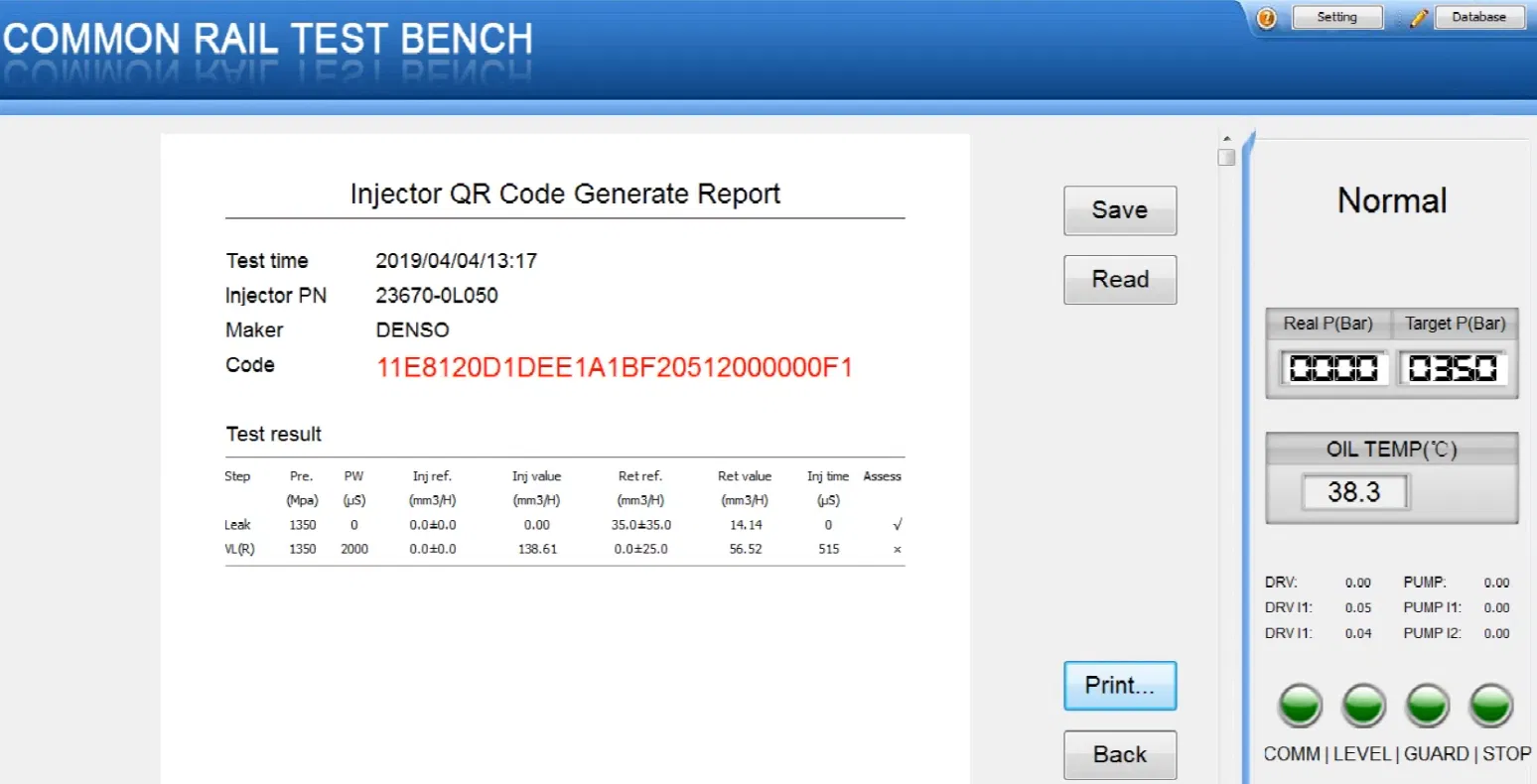

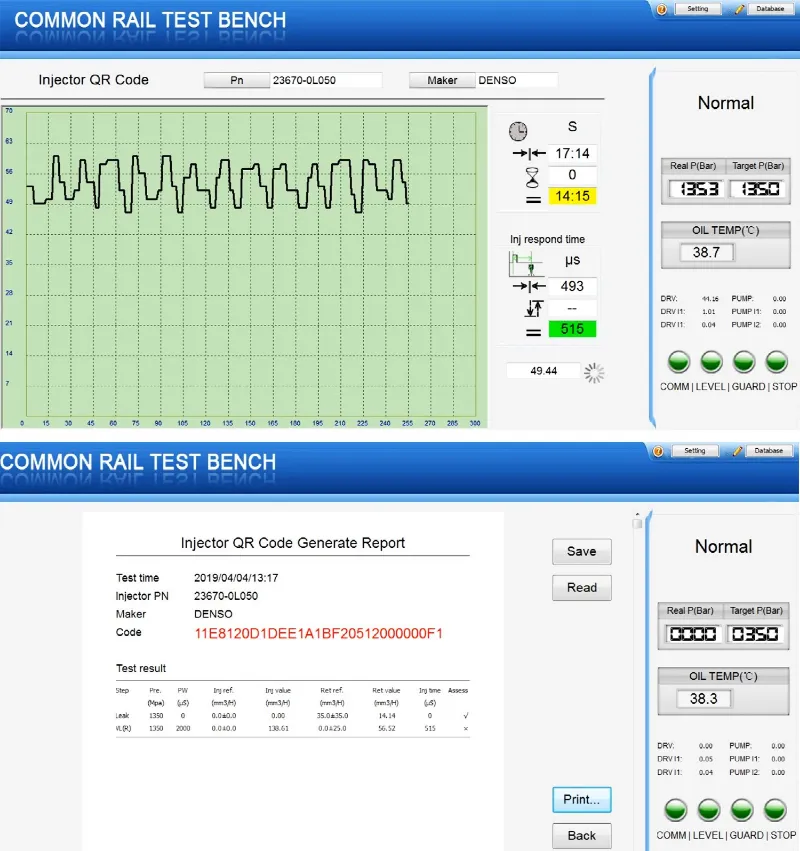

| 2. Coding system, can generate different compensation codes and correction codes |
| 3. Measurement system of resistance and inductance of injector's solenoid valve |
| 4. More than 3000 test data used for different brands injectors calibration |
| 5. Data backup, system software and database upgrade free charge all the time by remote |
| 6. Electronic measuring system, automatic testing the fuel quantity of all working conditions, and generate report after testing |
| 7. Automatic test injectors under different working conditions, automatic analysis results, and generate report after testing |
| 8. Intelligent algorithm is used to automatically calibrate the fuel quantity of the new injector, and generate reports after testing |
Product Details
Technical Parameters
| Technical Parameters | |
| Output | 2.6 KW |
| Power | 220V 50/60HZ |
| Speed | 0~1000 RPM |
| Rail Pressure | 0~1800 Bar |
| Rail Pressure Precision | ±5 Bar |
| Tank Volume | 8 L |
| Fuel Temperature | 40±2ºC |
| Filter Precision | < 5μm |
| Gross Weight | 180 kg |
| Packing Size | 880×930×910 mm |
| Speed Control Model | Converter Control |
| Temperature Control System | Air-Cooled Heat Dissipation |
| Nozzle Sensor | Imported Original Elliptical Type Flow Sensor |
| Language | English, Spanish, Russian,etc |
| Material | Metal Plate |
| Painting | Powder Painting, Durable |
| Color | Dark Blue/ Green (can be customized) |
| Logo | Jing Zheng Hong Ye (can be customized) |
| MOQ | 1 Piece |
| Payment | 40%Deposit, the rest paid before delivery |
| Warranty Time | 12 months |
| Delivery time | 30 days after prepaid |
| Shipping Packing | Wooden Case |

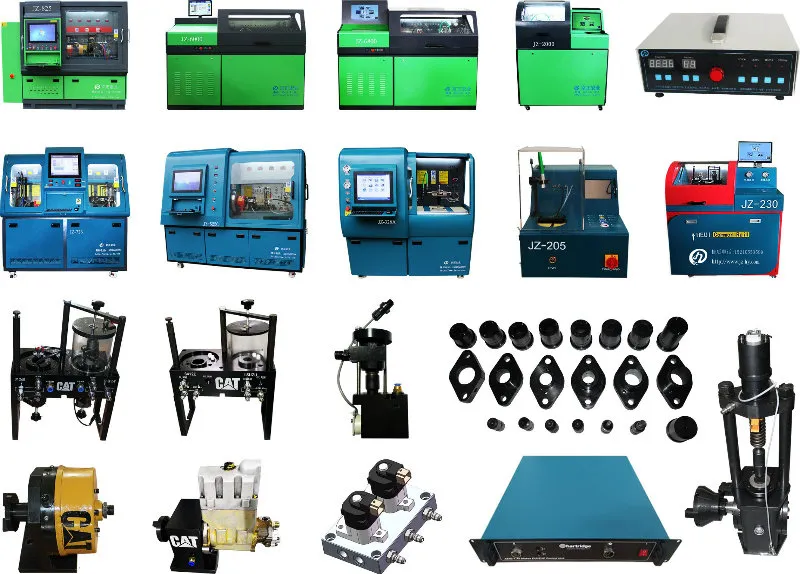

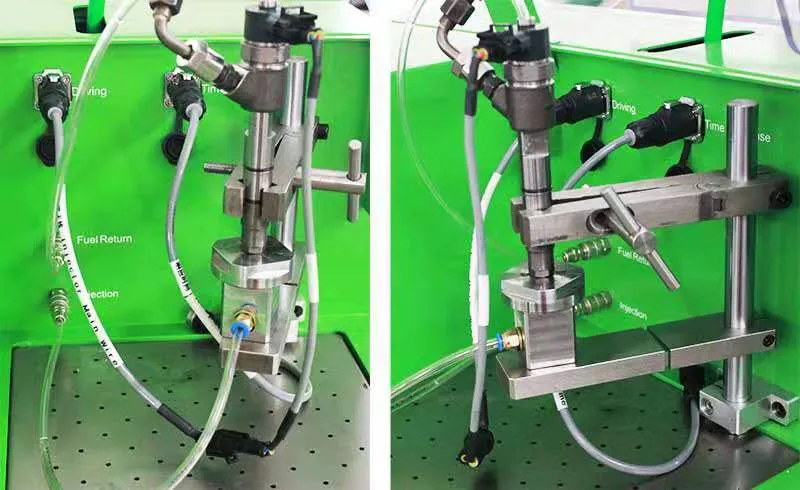

Related Products and Fixtures
Packing and Delivery

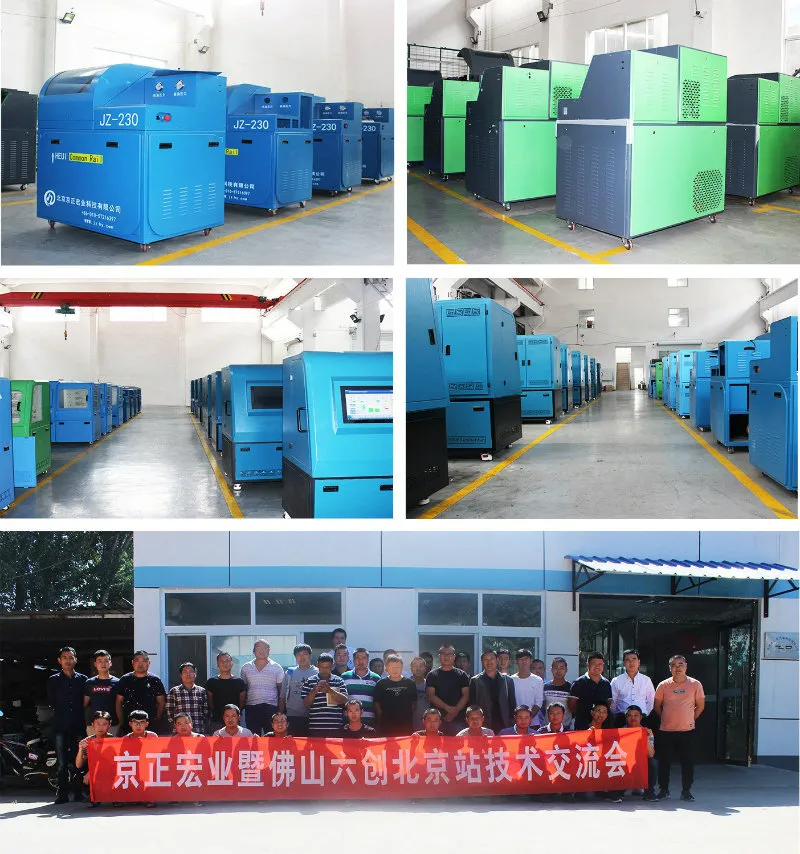

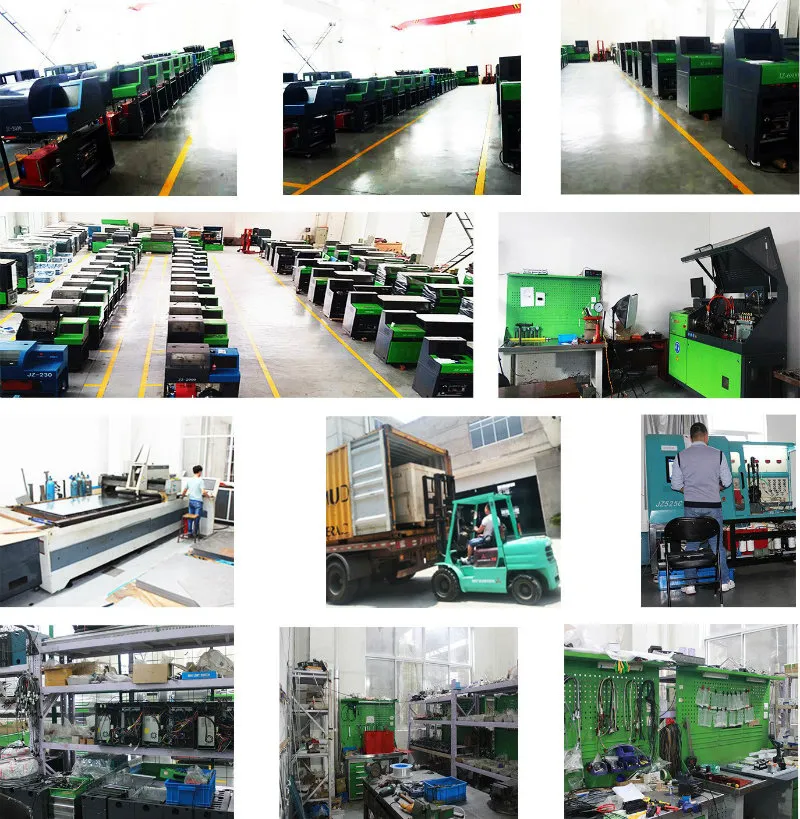

Our Company
Exhibition
Why Choose Us
1. Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years.
Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
2. Independent design and development team,and rich produce experience.
3. Almost all important parts of the equipment are come from top suppliers in the industry.
4. Strict QC, good pre-sale and after-sale service, Providing remote assistance services free.
5. Customized according to customer requirements, such as appearance, color, etc.
