Cat C7 C9 C-9 3126 3408 Heui Injector Test Bench
NT700 CAT C7 C9 C-9 3126 3408 HEUI injector test benchFunction and characteristic:HEUI common rail injector test bench automatically test C7/C9/C-9,C3126/3408,Ford 6.0L,7.3L, 3412E/ISUZU and other HEUI (Hydraulic Electronic Unit Injection) products.Automatically test the sealing performance, the inj......
Send Inquiry
Product Description

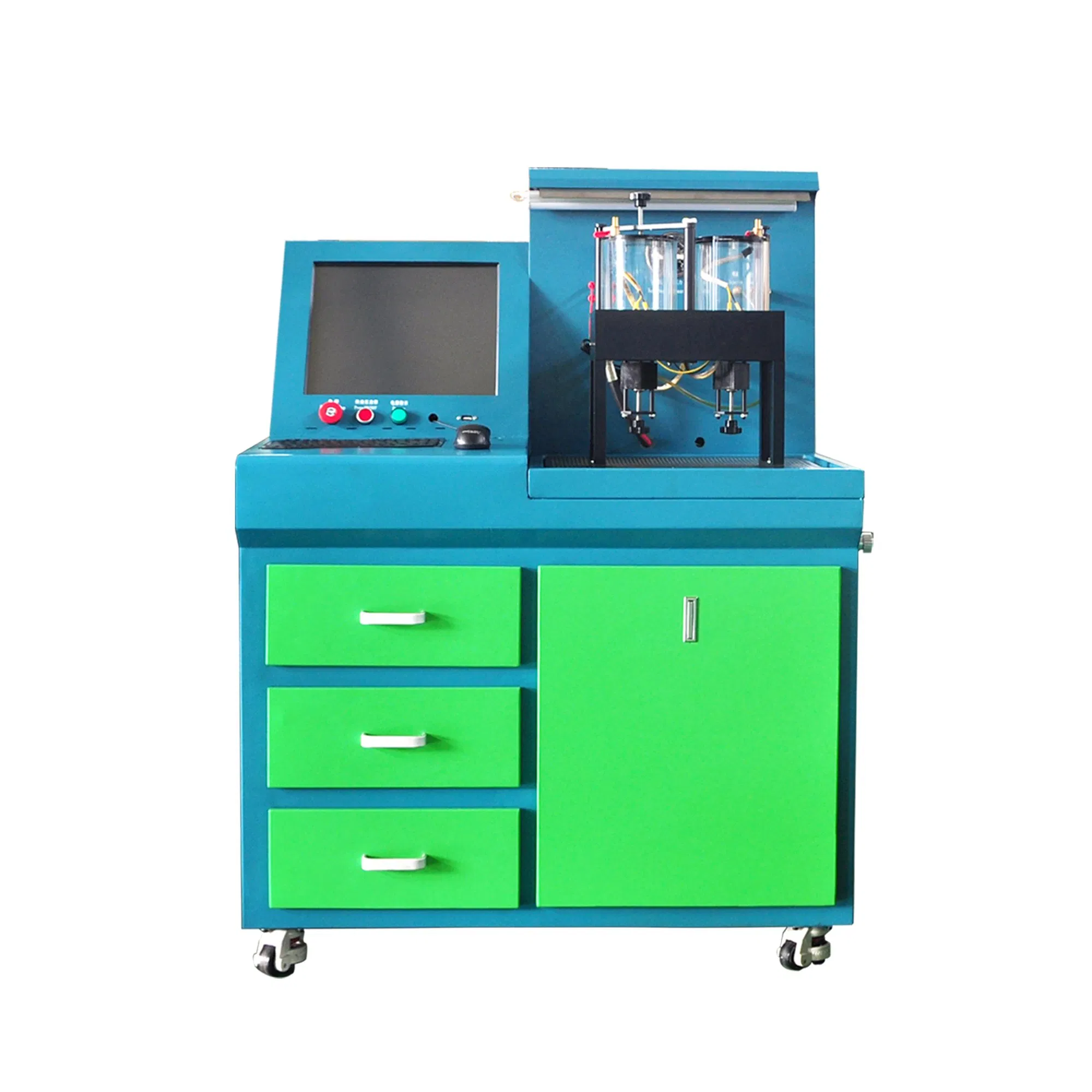

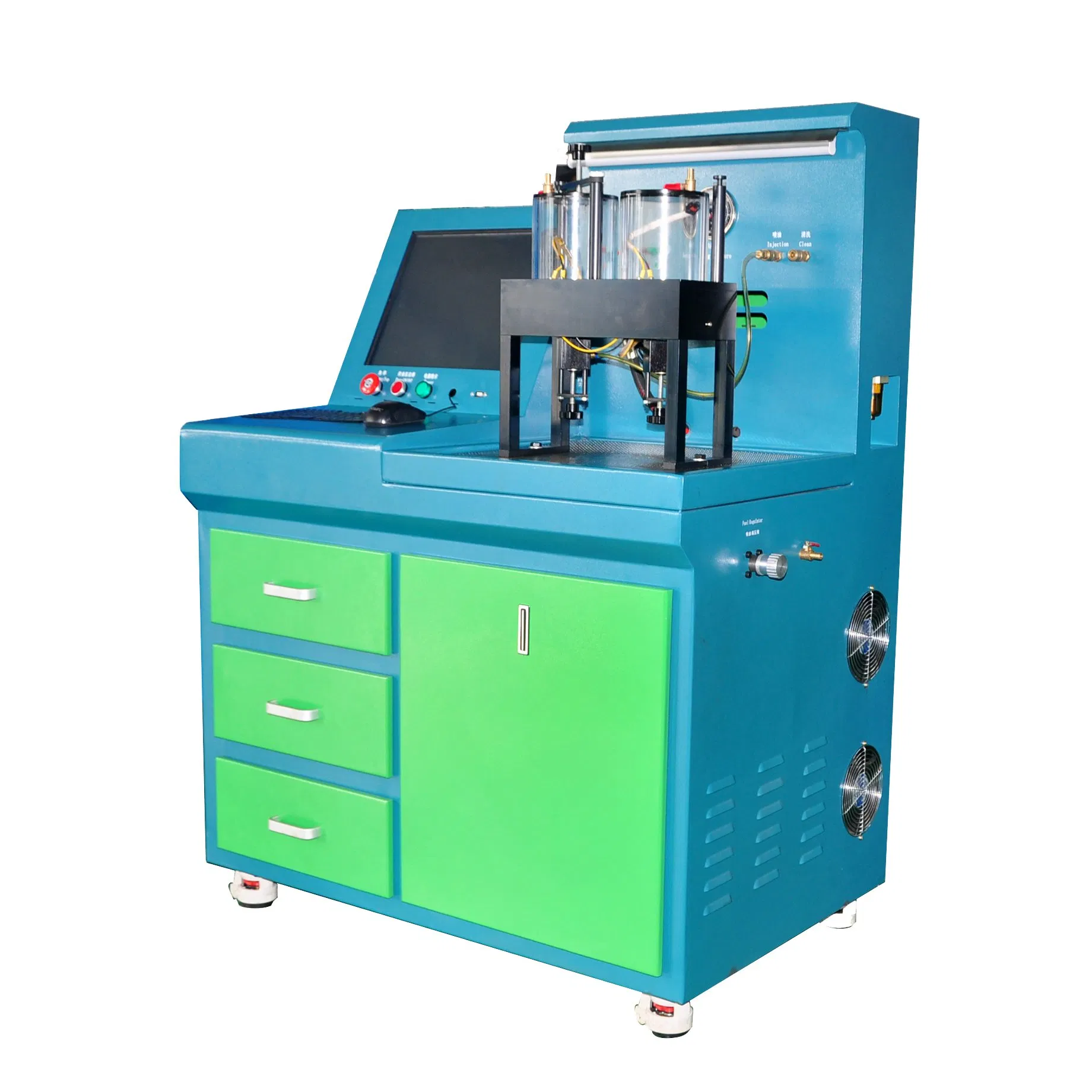

NT700 CAT C7 C9 C-9 3126 3408 HEUI injector test bench
Function and characteristic:
HEUI common rail injector test bench automatically test C7/C9/C-9,C3126/3408,Ford 6.0L,7.3L, 3412E/ISUZU and other HEUI (Hydraulic Electronic Unit Injection) products.
Automatically test the sealing performance, the injection fuel quantity and return volume under the status of idling, pre-injection, middle-speed, full-loaded.The maximum test pressure is 2200 bar.
Electrical performance test for solenoid valve
Main configuration:
Air cold fuel tank to control temperature at 40± 2 ºC accurately.
Equipped with double original German high-precision flow sensor
Equipped with special ram pump for HEUI testing system.
Automatically test the oil return of the HEUI
System advantage:
Industrial computer with Linux system to achieve flexible upgrading, data processing and functional expansion
The medium pressure common rail system ensure more precise control of pressure ( medium pressure ± 0.2Mpa)
HEUI medium pressure in the original data, can be scheduled to upgrade
HEUI common rail injector test bench besides original current curve data, user can set start voltage, current, hold voltage, current himself.
The drive connector of the fuel injection has the function of anti-short circuit.
Database remote one click upgrade
Function and characteristic:
HEUI common rail injector test bench automatically test C7/C9/C-9,C3126/3408,Ford 6.0L,7.3L, 3412E/ISUZU and other HEUI (Hydraulic Electronic Unit Injection) products.
Automatically test the sealing performance, the injection fuel quantity and return volume under the status of idling, pre-injection, middle-speed, full-loaded.The maximum test pressure is 2200 bar.
Electrical performance test for solenoid valve
Main configuration:
Air cold fuel tank to control temperature at 40± 2 ºC accurately.
Equipped with double original German high-precision flow sensor
Equipped with special ram pump for HEUI testing system.
Automatically test the oil return of the HEUI
System advantage:
Industrial computer with Linux system to achieve flexible upgrading, data processing and functional expansion
The medium pressure common rail system ensure more precise control of pressure ( medium pressure ± 0.2Mpa)
HEUI medium pressure in the original data, can be scheduled to upgrade
HEUI common rail injector test bench besides original current curve data, user can set start voltage, current, hold voltage, current himself.
The drive connector of the fuel injection has the function of anti-short circuit.
Database remote one click upgrade
