918s Common Rail System Test Machine, Eui Eup Test and Cam Box with Bip, Cat Heui Injector and Heui Pump Test, Cat320d Common Rail Pump Test
NT918S is practical and innovative design. The operating room workbench is designed as a widened and elongated flat workbench from the original Euro II workbench raised from the air, which completely solves the vibration and noise in the working process of the equipment, increases the stability of t......
Send Inquiry
Product Description
NT918S is practical and innovative design. The operating room workbench is designed as a widened and elongated flat workbench from the original Euro II workbench raised from the air, which completely solves the vibration and noise in the working process of the equipment, increases the stability of the equipment, and ensures The accuracy and repeatability of the test results are improved.
Functions and features:
Automatically test various solenoid valve injectors and piezoelectric injectors.
Automatically test all common rail pumps and HEUI driven pumps.
Automatically test CAT pump and TICSRES4 pump.
Automatically test the performance of the injector solenoid valve.
Automatically test the voltage-current curve of the injector.
Automatically test VP37 and VE37, VP44 pumps
Automatically test the unit pump and pump nozzle series.
Automatically test Bosch, CAT, CUMMINS, DDC, Delphi, Mercedes-Benz, Volvo EUI/EUP and dual valve E3, CUMMINS HPI X15 Q60 and other special products, and have a fuel injection response time (BIP) test function, which can quickly and accurately Judge the overall performance of EUI EUP.
Automatically test Denso dual magnetoelectric sensor HPO pump and single magnetoelectric Hall sensor Denso pump, etc.
Automatically test C7/C9/C-9, C3126/3408, Ford power stroke 6.0L and other medium voltage products.
Main configuration:
NT918S full-function common rail test bench adopts industrial capacitive touch screen and rotary operation interface.
Use movable sliding doors and side doors. The double door design makes the working space more convenient.
Use movable casters, which can rotate 360 degrees freely.
Wireless network card provides remote technical services
Use Bosch original CP3.3 new oil pump
With test voltage monitor
Industrial air conditioner, dual temperature control stainless steel tank, automatic temperature control system, control the oil temperature at 40±2ºC.
Equipped with original BOSCH original DRV and ZME, German BOSCH EPS815 special temperature control rail pipe, rail pressure is controlled at ±0.5Mpa, temperature control rail pipe, rail pressure range is 0-250Mpa.
Equipped with four German high-precision flow sensors. Test fuel injection, pump supply, pump oil return, and engine oil injection. The flow range is 0.00~4L/min, and the test accuracy is 0.3%.
The main motor is 15kW/18.5kW/22kW, which can provide different power sources for different countries and markets.
System advantages:
Embedded industrial computer system: high-speed operation, high test accuracy and retest accuracy
The original Bosch test bench database can set the current curve. The test accuracy is similar to the world's leading test bench.
The equipment has high reliability and stable performance. Small noise and no vibration
Including Chinese, English, German, Spanish, French, Russian and Portuguese operation interface, suitable for global use.
NT918S full-function test bench has three unique functions:
1. QR code of Bosch, Siemens, Denso, Delphi;
2. Fuel injection should be tested for time;
3. Delphi E3 and Cummins ISX HPI series test.
It not only helps to improve the accuracy of maintenance, but also provides a higher standard for the inspection and remanufacturing of fuel injector related parts.

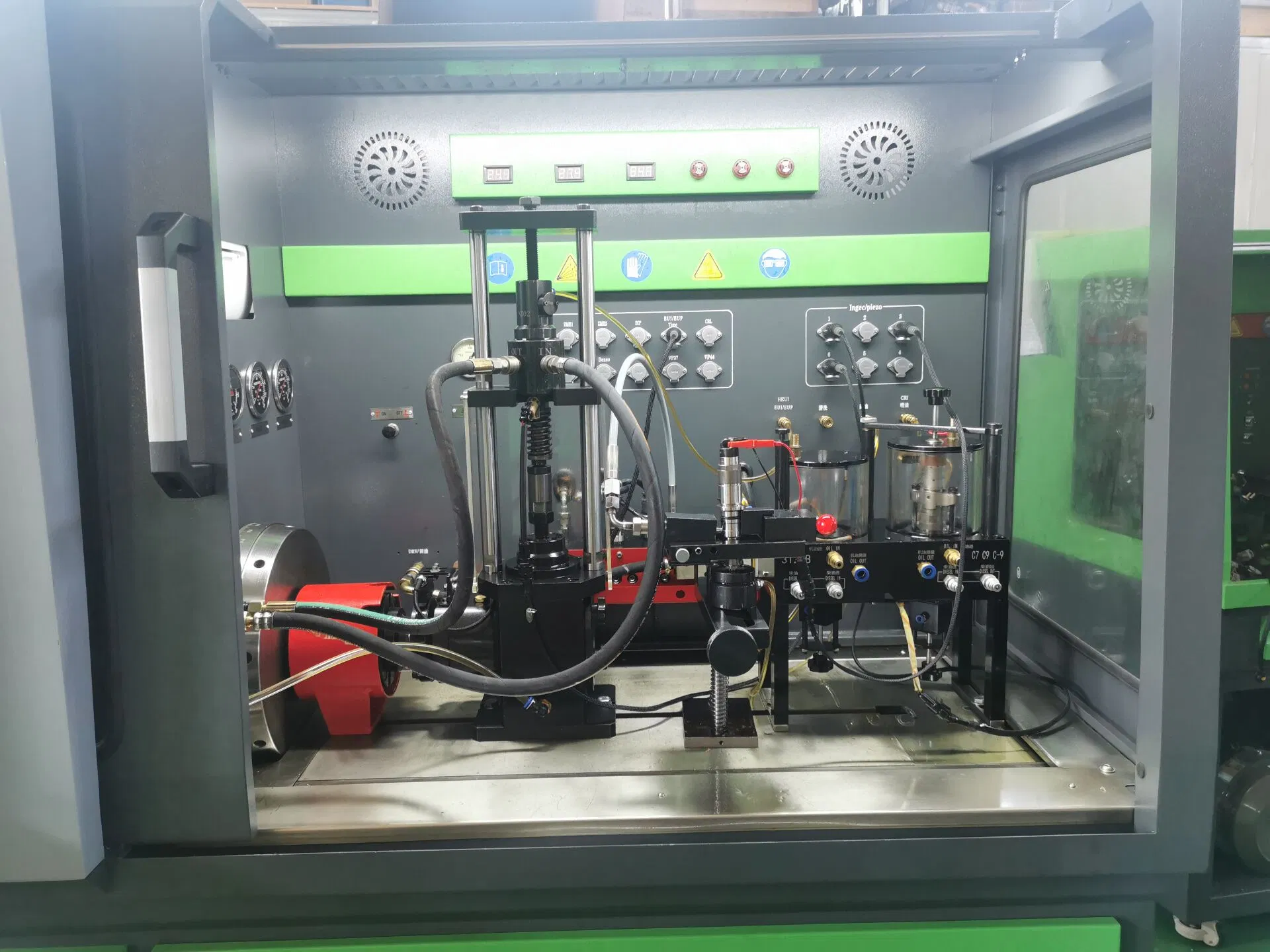

Flat work surface
The operating room workbench is innovatively designed from the original Euro II workbench raised from the suspension to a widened and elongated flat workbench, which completely solves the vibration and noise during the working process of the equipment, increases the stability of the equipment, and ensures the accuracy of the test results Degree and good repeatability. The enlarged work surface makes the commonly used work platform immobilized, which changes the repeated disassembly and assembly of equipment during work, and greatly improves the timeliness of work during maintenance.
Dual displayer, One system
One displayer includes testing software, for the other displayer, you can put user manual, customer information and so on inside.
Parts query system
The system has a built-in professional maintenance technical data query system to provide customers with digital technical support for maintenance vehicles, which is set well in the displayer.
Auto repair and auto parts management system
The built-in auto parts auto repair management software provides soft power support for customers' store operations, with more favorable prices and visible benefits.
Main product list

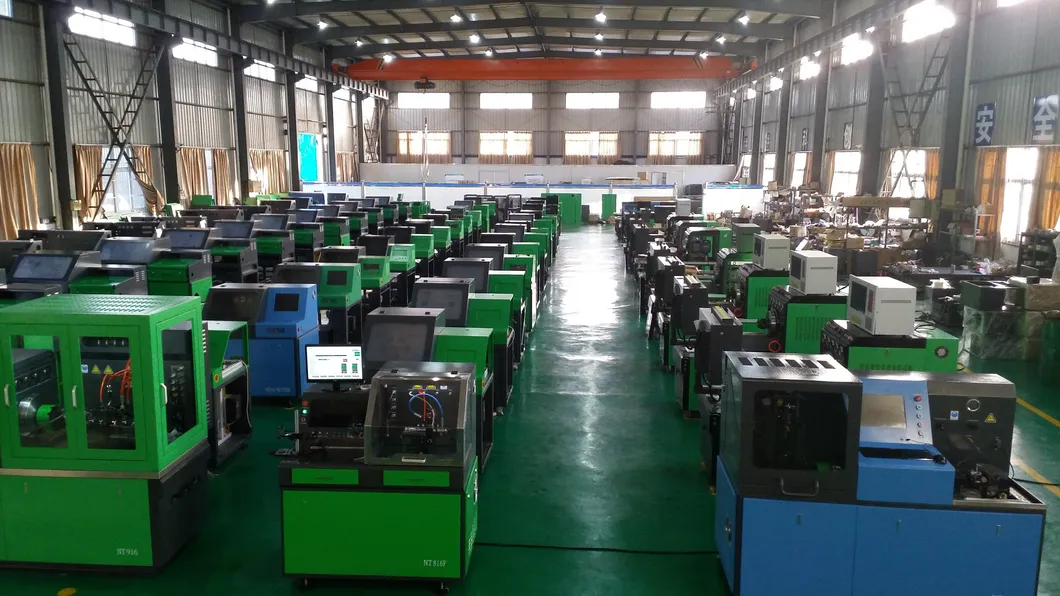

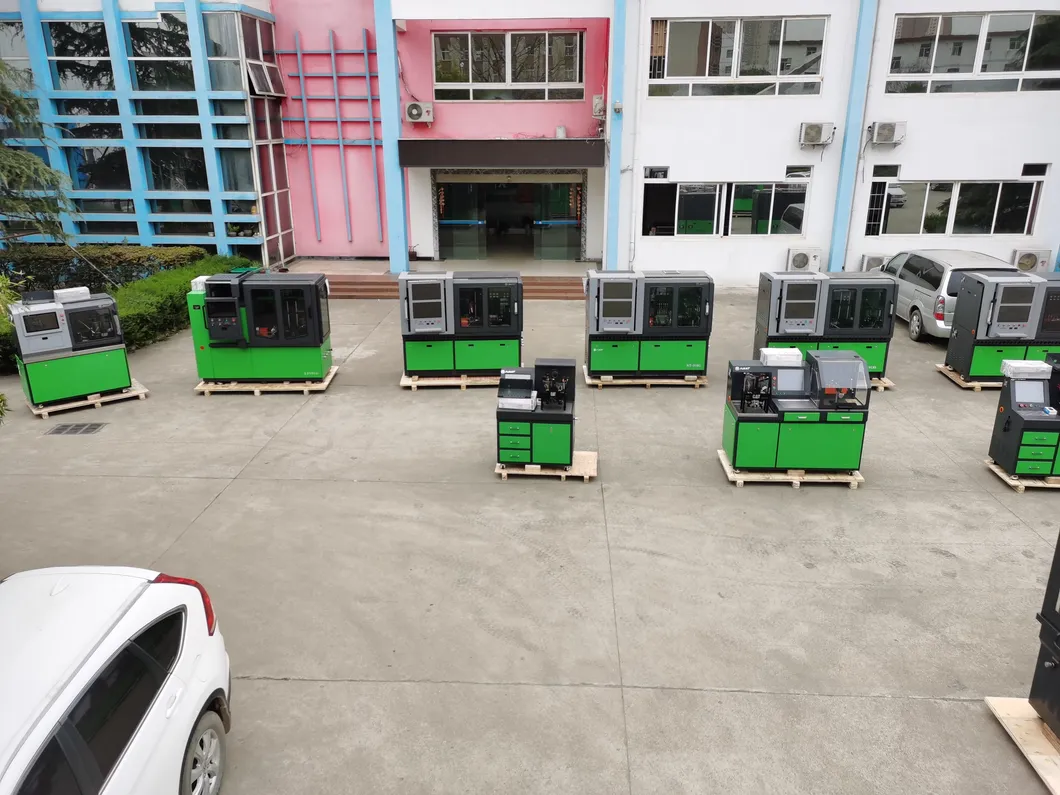

Our factory
Our gurantee: one year of free maintenance for overall unit, equipment maintenance for life.

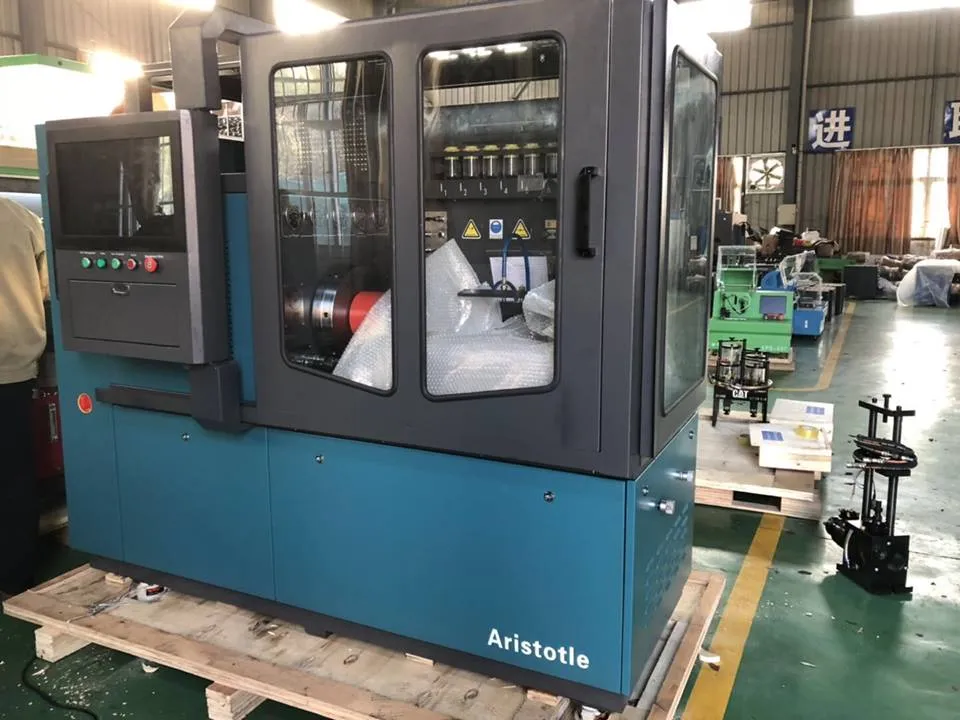

Packing and delivering
Exhibitions and customers visiting
