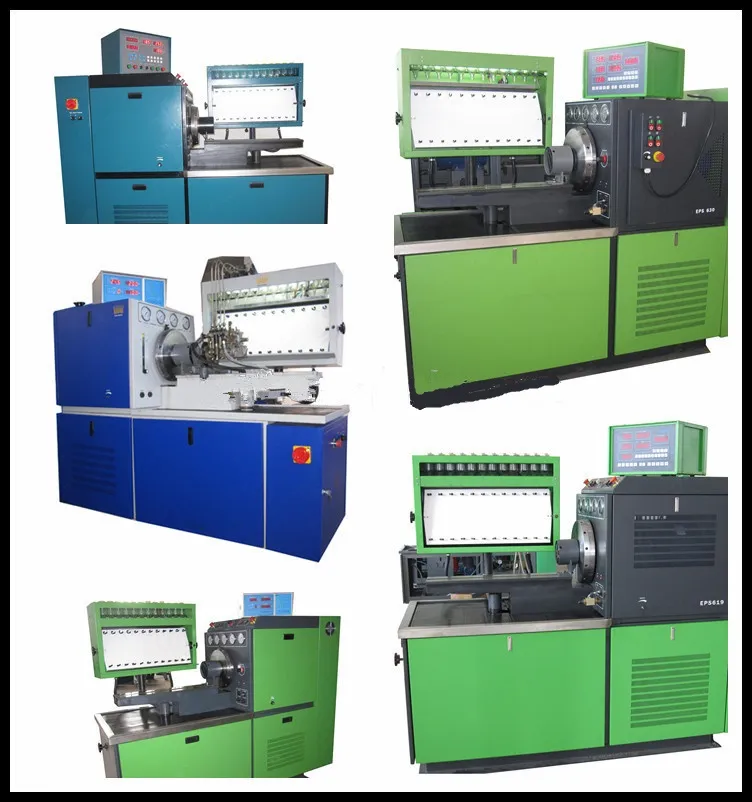

12psdw-EPS615 Diesel Pump Test Bench 15kw
EPS615 Diesel Pump Test BenchAdvantages1. Large inertia flywheel.2. Automatic oil unloading device.3. Automatic flap oil collect device.4. High precision test of rack travel.5. Optional installation with lubrication oil system.6. Automatically and manually double control system.7. Optional installat......
Send Inquiry
Product Description

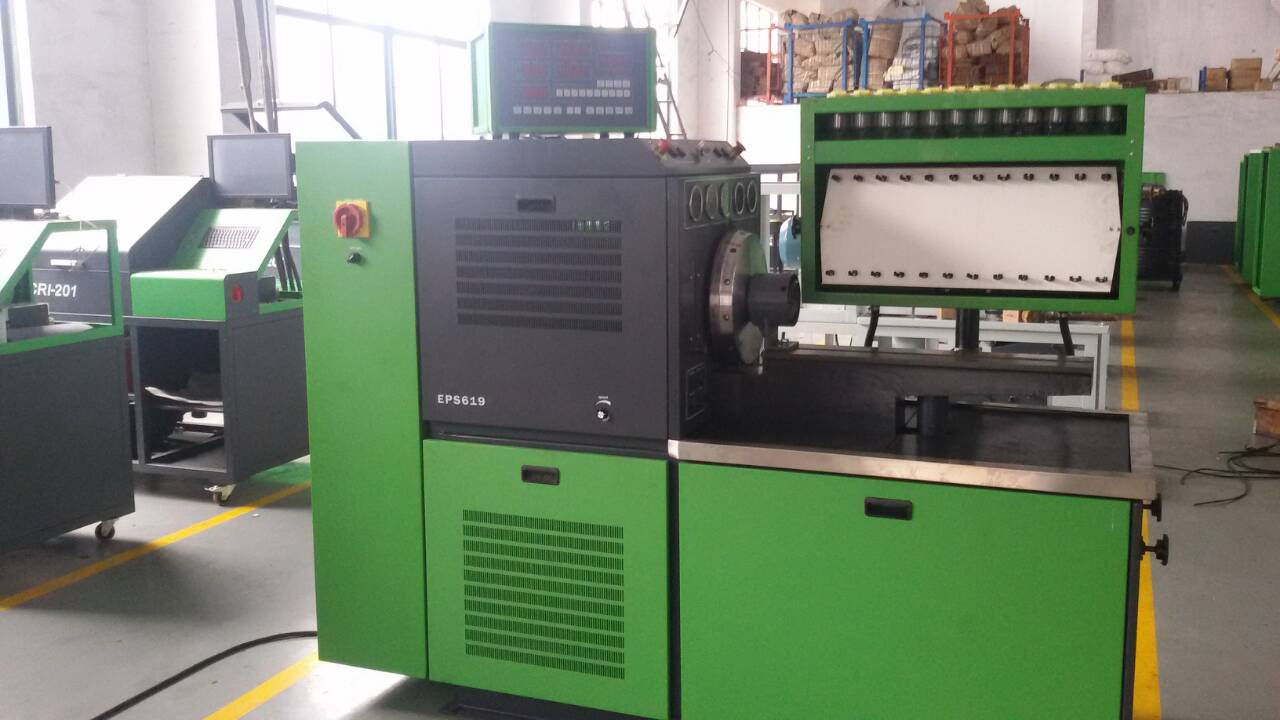

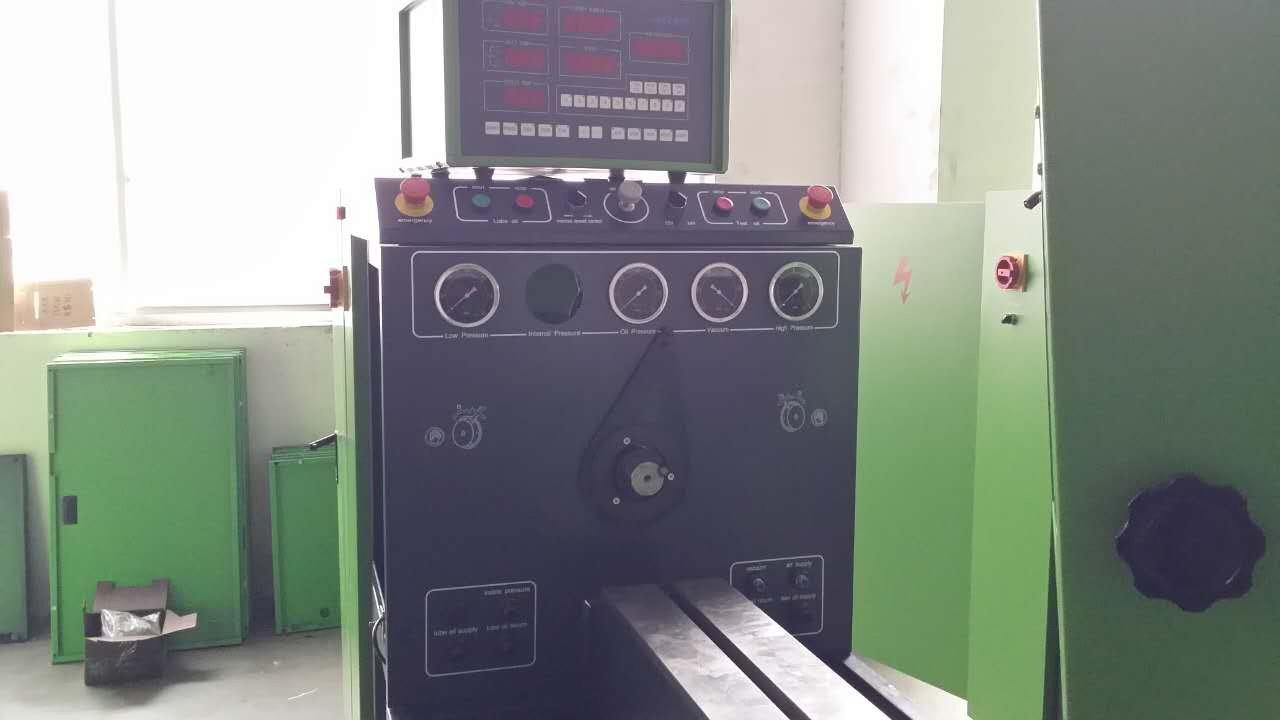

EPS615 Diesel Pump Test Bench
Advantages
1. Large inertia flywheel.
2. Automatic oil unloading device.
3. Automatic flap oil collect device.
4. High precision test of rack travel.
5. Optional installation with lubrication oil system.
6. Automatically and manually double control system.
7. Optional installation with temperature control system.
Functions
. Test feeding pump.
. Test the return volume of distributor pump.
. Test the solenoid valve of distributor pump.
. Test the cavity pressure of distributor pump.
. Test theperformance of pressure compensator.
. Test the sealing performance of the injection pump.
. Test the oil supply amount and uniformity in each cylinder.
. Test the performance of air film mechanical speed governor.
. Test and adjust the performance of mechanical speed governor.
. Test the interval angle in each cylinder and commencement of oil supply under the static state.
Advantages
1. Large inertia flywheel.
2. Automatic oil unloading device.
3. Automatic flap oil collect device.
4. High precision test of rack travel.
5. Optional installation with lubrication oil system.
6. Automatically and manually double control system.
7. Optional installation with temperature control system.
Functions
. Test feeding pump.
. Test the return volume of distributor pump.
. Test the solenoid valve of distributor pump.
. Test the cavity pressure of distributor pump.
. Test theperformance of pressure compensator.
. Test the sealing performance of the injection pump.
. Test the oil supply amount and uniformity in each cylinder.
. Test the performance of air film mechanical speed governor.
. Test and adjust the performance of mechanical speed governor.
. Test the interval angle in each cylinder and commencement of oil supply under the static state.
Technical parameter
| Motor power | 5.5,7.5,11,15,18.5,22,30kw |
| Power supply voltage | 415,380,220v |
| Power supply frequency | 50/60 HZ |
| Protection level | IP54 |
| Speed range | 0-4000 rpm |
| Counter setting range | 0-9999 |
| Temperature setting range | 0-80°C |
| Center height of driving shaft | 125mm |
| DC power | 12/24V |
| Diameter of the Driving connector | 120mm |
| Measuring tube | 45ml,150ml,260ml(optional) |
| Number of Measuring cylinder | 6,8,12 |
| Fuel Supply pump | 10L/min |
| Fuel supply pressure | High pressure:0-40bar;low perssure:0-4bar |
| Fuel tank cubage | 60L |
| Pressure meter | Low pressure:0-6bar;high pressure:0-60bar;inner pressure:0-16bar;Vacuum pressure:-1-2.5bar;Oil meter:0-10bar |
| Heat Power | 2kw |
| Temperature controlled range | 30-65ºC |
| Size | 2200*1100*1750mm |
| Weight | 1100kg |
